Ista Breeze i-1500 Wind Turbine 24V 1500W Windsafe





i-1500-24v-windsafe Product description:



We are pleased to introduce our new wind turbine IstaBreeze® WindSafe.

The newly developed IstaBreeze® WindSafe is a wind turbine for long-term professional use, which delivers energy automatically and unattended reliably even under extreme conditions.

Our WindSafe's aBreeze® wind turbine model has a revolutionary turbine protection system, the rotor is supported on a movable platform that raises the entire structure by 90 degrees in windstorm or strong wind, modifying the repeller relative to the wind, reducing frontal attack and rotation is reduced. This protects the turbine from strong winds. This robust construction ensures a long service life of our turbines and becomes a unique system in the category of mini wind turbines.

The generous dimensioning of the generator components and the heat dissipation through the grooves in the aluminum housing of the generator ensure a low thermal load, which ensures a long service life even at high ambient temperatures.









     graphic







 detay2





i1500 Windsafe




ARTICLE FEATURES - WIND TURBINE
System Voltage
24V
Generator
3-phase permanent magnet (High efficiency due to strong permanent magnets (NdFeBo magnets, 150 ° temperature resistant) (The threading of our copper winding is done exclusively by hand.)
Rated Capacity
1500 W
Alternator-Housing
Aluminium
Direction Flag
Plastic + 30% glass fiber
Power Thickness Max
55 A

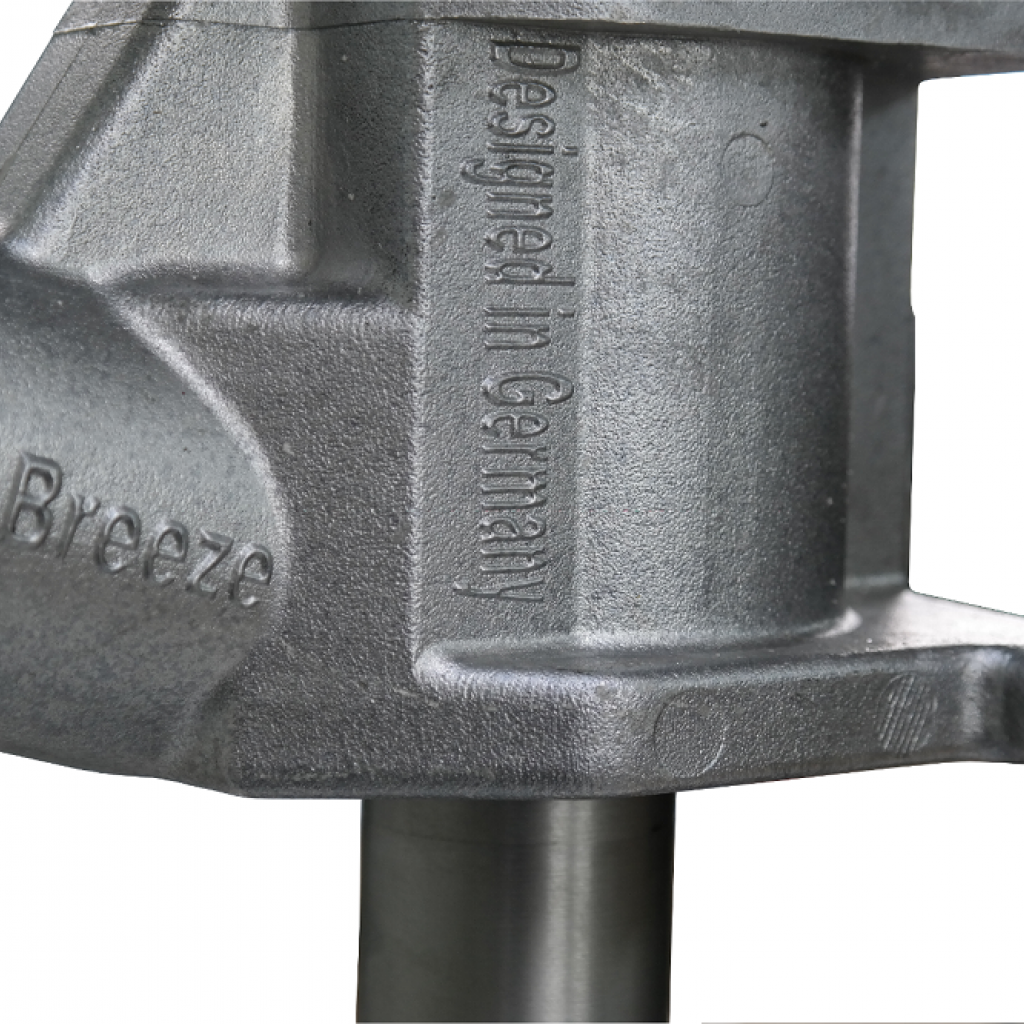

SUPPORTING ELEMENT
Material
Aluminium Casting
Automatic Road Circuit
14 m / s (by tilting the rotor)
Power Transmission
Slip ring, thus no twisting of the cable possible. (pre-assembled in the supporting element)
WEIGHT incl. GENERATOR
23 kg
BLADE SPECIFICATION
Material
Plastic + 30% glass fibers
Length
107 cm
Weight
650 g (per blade)
Color
Black
Rotor Diameter
225 cm
Noise
40 dB
SCOPE OF DELIVERY
Assembly Instruction
1 pc
Blades
3 pcs
Generator
1 pc
Mounting Screws
1 set
Hub
1 pc
Nose
   1 pc
Supporting Element
   1 pc
