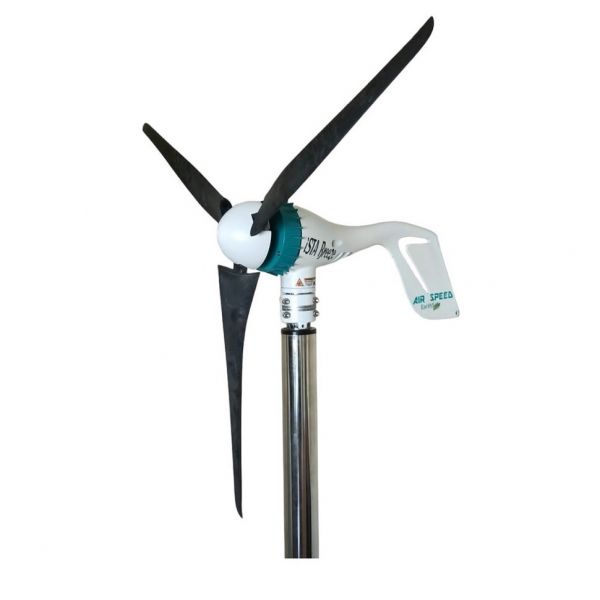

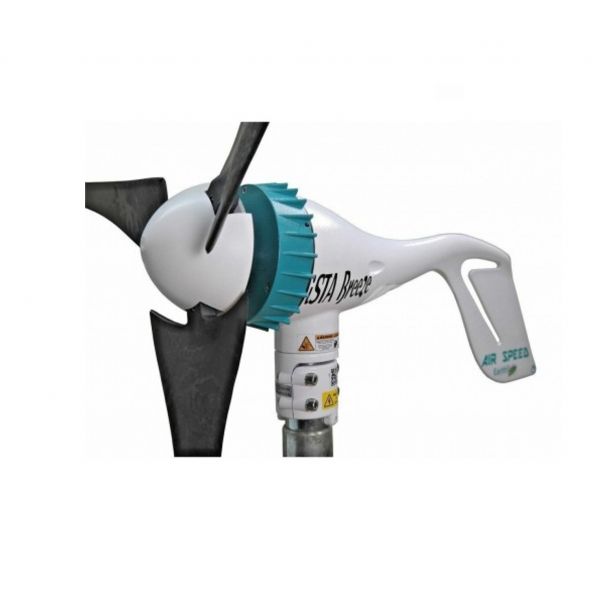

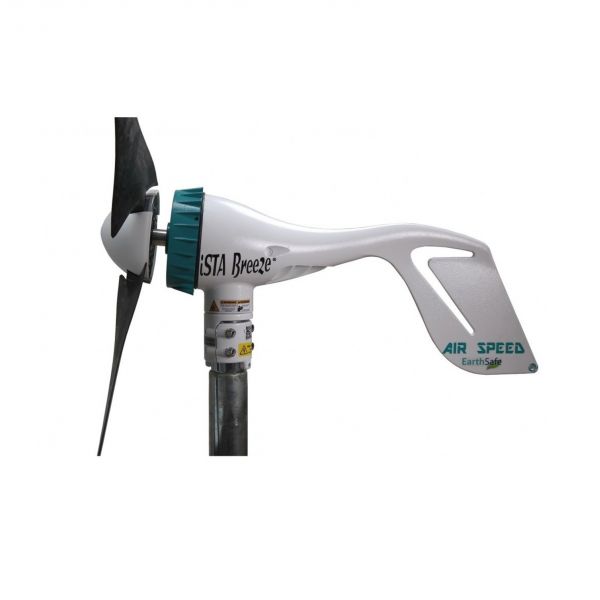

IstaBreeze Air Speed 500W 12V/24V Wind Turbine



  • airspeed wind turbine
  • airspeed wind turbine-2
  • airspeed wind turbine-3
  • airspeed wind turbine-4
  • airspeed wind turbine
  • airspeed wind turbine-2
  • airspeed wind turbine-3
  • airspeed wind turbine-4


Product Description:



Our world leading range of iSTA-BREEZE® Ideal for marine, camping, garden and home use.

  • Universal application for low, middle and high wind

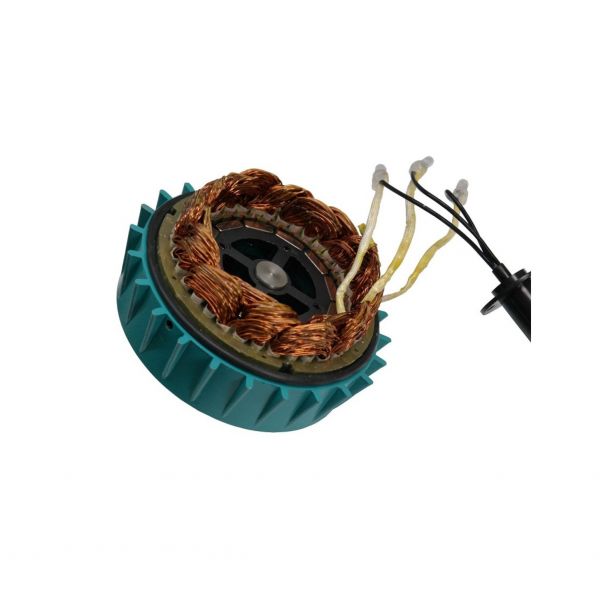

  • 3-phase permanent magnets (High efficiency due to strong permanent magnets (NdFeB magnets, 150 ° temperature resistant)
  • Aerodynamic design
  • Powder coated aluminum
  • Low noise
  • UV-resistant Plastic + 30% glass fibers blades, successfully tested
  • Power transmission through slip ring, thereby no twisting of the cable possible
  • Durable and low maintenance
  performance chart  instruction





detay1









PRODUCT FEATURES - WIND TURBINE
Current
40A (12V) - 20A (24V)
Generator Body
Aluminium
Body Material
Aluminium
Maximum Power
500W
Rated Power
420W

   Voltage

    12V-AC / 24V-AC

   Package Dimensions

    70 x 30 x 20 cm (7Kg)
WIND SPEED
Initial Wind Speed
3 m/s
Maximum Wind Speed
15-16 m/s
BLADE SPECIFICATION
Blade Material
Carbon
Blade Length
55 cm
Rotor Diameter
115 cm
Noise
40 dB

   Weight

   180 Gr

   Width

   10 cm
NECESSARY EQUIPMENTS

Battery
Suitable battery group: Min 1800W - Max 2400W
PACKAGE CONTENT
Connection Screws
1 Set
Nose
1 Pc
Flange
    1 Pc
Body
    1 Pc
Blades
    3 Pcs
Manual Book
    1 Pc
